Wave Energy and Wave Changes with Depth

The content and activities in this topic will work towards building an understanding of how waves move through water and how the orbital motion of water particles in waves causes them to break on shore.

Wave Energy

Many forms of energy are carried in heat, light, sound, and water waves. Energy is defined as the ability to do work; all forms of energy can be transformed into work. In science, work is defined as the movement of an object in the direction of the force applied to it. Waves do work when they move objects. We can see this work when heavy logs move across ocean basins or sand is transported. Work can also be converted into sound energy heard when waves crash on the shore. The powerful energy in waves can also be used to do work by moving generator parts to produce electricity.



Climate Connections: Wave Power



Ocean waves carry huge amounts of energy. The amount of energy can be measured in joules (J) of work, calories (c) of heat, or kilowatt-hours (kWh) of electricity (Table 4.8). The standard measurement of energy in science is the joule.



Table 4.8. Measurements of energy and conversions between measurements
  joule calorie kilowatt-hour

joule

A joule (J) is the energy needed to lift 1 kilogram of matter 1 meter at sea level

  1 calorie = 4.18 joules 1 kilowatt-hour = 3.6 x 106 joules

calorie

A calorie (c) is the energy needed to raise the temperature of 1 gram of water 1 degree centigrade. 1 calorie = 1000 kilocalories (also recorded as Calorie with a capital C)

1 joule = 0.24 calories   1 kilowatt-hour = 8.6 x 105 calories

kilowatt-hour

A kilowatt-hour (kWh) is the standard measurement of energy in the United States. It is equivalent to the work of a kilowatt for one hour (about the power used by a toaster for one hour

1 joule = 2.78 x 10-7 kilowatt-hours 1 calorie = 1.16 x 10-6 kilowatt-hours



The amount of energy in a wave depends on its height and wavelength as well as the distance over which it breaks. Given equal wavelengths, a wave with greater amplitude will release more energy when it falls back to sea level than a wave of lesser amplitude. Energy (E) per square meter is proportional to the square of the height (H): E∝H2. In other words, if wave A is two times the height of wave B, then wave A has four times the energy per square meter of water surface as wave B.



<p><strong>Fig. 4.17.</strong> Energy comparison between a wave with a height of 2 m and a wavelength of 14 m breaking over 2 km, a gallon of gasoline, and an average home’s daily use shows that the three are relatively equivalent.</p><br />

A wave with a height of 2 m and a wavelength of 14 m breaking along 2 km of coastline (surface area = 32,000 m2) has approximately 45 kWh of energy. This is roughly equivalent to one gallon of gasoline, which contains about 160 million (1.6 x 108) joules (J) of energy. According to the US Department of Agriculture, the World Bank, and the US Energy Information Administration, the average American eats 3.14 kWh per day in food, uses about 37 kWh in electricity, and uses a combined 250 kWh per day in electricity and petroleum. This means that the energy in one 2 m by 14 m by 2 km wave is equivalent to the amount of energy needed to feed a person for two weeks, power their home for one day, or power their electrical and transportation needs for 5 hours (Fig. 4.17). Ocean waves offer a very large source of renewable energy. Technologies that efficiently harvest this energy resource are actively being researched and developed by scientists.



Orbital Motion of Waves

By watching a buoy anchored in a wave zone one can see how water moves in a series of waves. The passing swells do not move the buoy toward shore; instead, the waves move the buoy in a circular fashion, first up and forward, then down, and finally back to a place near the original position. Neither the buoy nor the water advances toward shore.



As the energy of a wave passes through water, the energy sets water particles into orbital motion as shown in Fig. 4.18 A. Notice that water particles near the surface move in circular orbits with diameters approximately equal to the wave height. Notice also that the orbital diameter, and the wave energy, decreases deeper in the water. Below a depth of half the wavelength (D = 1/2 L), water is unaffected by the wave energy.

<p><strong>Fig. 4.18.</strong> (<strong>A</strong>) If a small buoy (black circle) was on the surface of the water, it would move in a circular motion, returning to its original location due to the orbital motion of waves in deep water. (<strong>B</strong>) As deep-water waves approach shore and become shallow-water waves, circular motion is distorted as interaction with the bottom occurs.</p><br />




Deep-Water, Transitional, and Shallow-Water Waves

Swells are deep-water waves, meaning that the depth (D) of the water is greater than half the wave’s wavelength (D > 1/2 L). The energy of a deep-water wave does not touch the bottom in the open water (Fig. 4.18 A).



When deep-water waves move into shallow water, they change into breaking waves. When the energy of the waves touches the ocean floor, the water particles drag along the bottom and flatten their orbit (Fig. 4.18 B).



<p><strong>Fig. 4.19.</strong> The action of someone tripping is similar to the interaction between a shallow-water wave and the bottom of the ocean</p>



Transitional waves occur when the water depth is less than one-half the wavelength (D < 1/2 L). At this point the water movement of particles on the surface transitions from swells to steeper waves called peaking waves (Fig. 4.19). Because of the friction of the deeper part of the wave with particles on the bottom, the top of the wave begins to move faster than the deeper parts of the wave. When this happens, the front surface of the wave gradually becomes steeper than the back surface.




When the water depth is less than one-twentieth the wavelength, the wave becomes a shallow-water wave (D < 1/20 L). At this point, the top of the wave travels so much faster than the bottom of the wave that top of the wave begins to spill over and fall down the front surface. This is called a breaking wave. A breaking wave occurs when one of three things happen:

  1. The crest of the wave forms an angle less than 120˚,
  2. The wave height is greater than one-seventh of the wavelength (H > 1/7 L), or
  3. The wave height is greater than three-fourths of the water depth (H > 3/4 D).



In some ways a breaking wave is similar to what happens when a person trips and falls. As a person walks normally, their feet and head are traveling forward at the same rate. If their foot catches on the ground, then the bottom part of their body is slowed by friction, while the top part continues at a faster speed (see Fig. 4.19). If the person’s foot continues to lag far behind their upper body, the angle of their body will change and they will topple over.

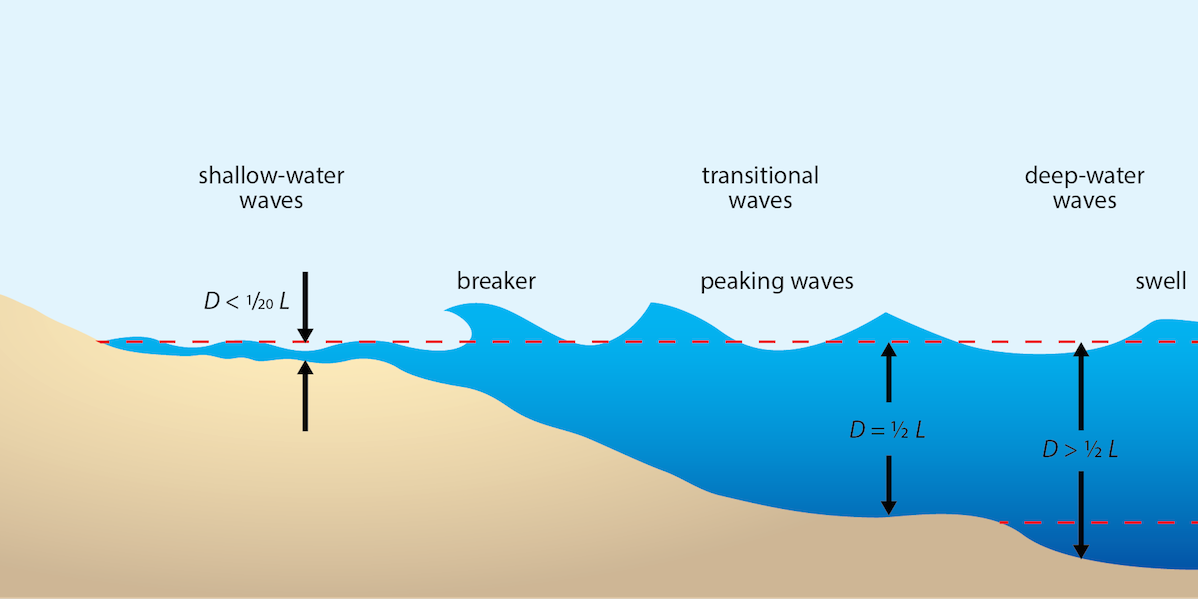

<p><strong>Fig. 4.20.</strong> Waves change as they approach the shore.</p><br />


The transition of a wave from a deep-water wave to a shallow-water breaking wave is shown in Fig. 4.20. Terms relating to wave depth a described in detail in Table 4.9.



Table 4.9. Terms relating waves to water depth
Symbols
  • D = Depth of water
  • L = Length of wave
  • H = Height of wave



Deep-water waves
Deep-water waves are waves traveling across a body of water where depth is greater than half the wavelength (D > 1/2 L). Deep-water waves include all wind-generated waves moving across the open ocean.



Transitional waves

Transitional waves are waves traveling in water where depth is less than half the wavelength but greater than one-twentieth the wavelength (1/20 L < D < 1/2 L). Transitional waves are often wind-generated waves that have moved into shallower water.



Shallow-water waves

Shallow-water waves are waves traveling in water where depth is less than one-twentieth the wavelength (D < 1/20 L). Shallow-water waves include wind-generated waves that have moved into shallow, nearshore areas, tsunamis (seismic waves) generated by disturbances in the ocean floor, and tide waves generated by the gravitational attraction of the sun and moon.



Breaking shallow-water waves

Breaking shallow-water waves are unstable shallow-water waves. Usually shallow-water waves begin to break when the ratio of wave height to wavelength is 1 to 7 (H/L = 1/7), when the wave’s crest peak is steep (less than 120˚), or when the wave height is three-fourths of the water depth (H = > 3/4 D).



Breaking deep-water waves

Breaking unstable deep-water waves are waves that begin to break when the seas are confused (waves from mixed directions) or when the wind blows the crests off waves, forming whitecaps.



Activity

Activity: Orbital Motion of Waves

Observe orbital motion of waves in a long wave tank.

Activity

Activity: Simulate Deep-Water, Transitional, and Shallow-Water Waves

Use a long wave tank to create and observe the differences between deep-water, transitional, and shallow-water waves.

Representative Image:
